FEATURES

• Win 2000/NT/9x based system for 3D image visualization and analysis
• Fast Ray Cast, Hybrid, MIP, X-Ray Volume Rendering
• Iso-surface extraction and Surface Rendering
• Real-time volume rendering using the Mitsubishi RT-Viz vg500 real-time volume rendering card
• Key-frame based Animation capability
• Plug-in support for extedinbility (existing plugins for Segmentation, Landmark placement and vessel path extraction from MRA data)
• Collaboration support for multi-user environment
• Supported I/O

  Input:
  • DICOM 3.0,
  • Raw [8-bit, 16-bit, endian control, signed/unsigned, RGB (24-bit: Ideal for microscopy), RGBA (24+16bit alpha: Ideal for Visible Human or segmented datasets)],
  • Raw Image Stack with option header skip,
  • TIFF image stack, BMP image stack,
  • MIRA (custom) volume image format,
  • ANALYZE 7.5


  Output:

• Raw (8bit, 16bit),
• MIRA (8-bit, 16-bit),
• Raw Image Stack,
• ANALYZE 7.5.


• Easy to use interface for specification of Rotation, Lighting, VOI, Transfer functions, Insight View, Oblique cuts, Rendering method.
• Multi-planar viewing and navigation
• Mail, Save, Print images/screens
• Multi-volume support
• MATLAB-like console interface for multi-volume analysis, mathematical operations, filtering, masking, resizing, etc.
• Backgrond Color

Screen Shots & User Interaction : See attached PDF file

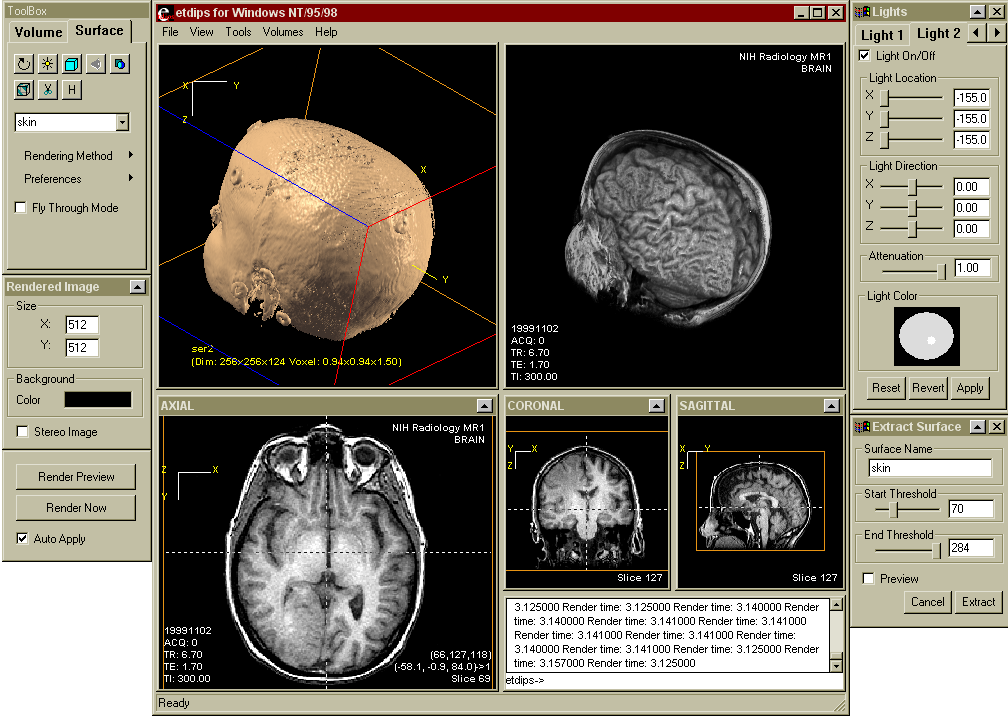

A screen shot of etdips for Windows 2000/NT/9x user interface is shown above.
